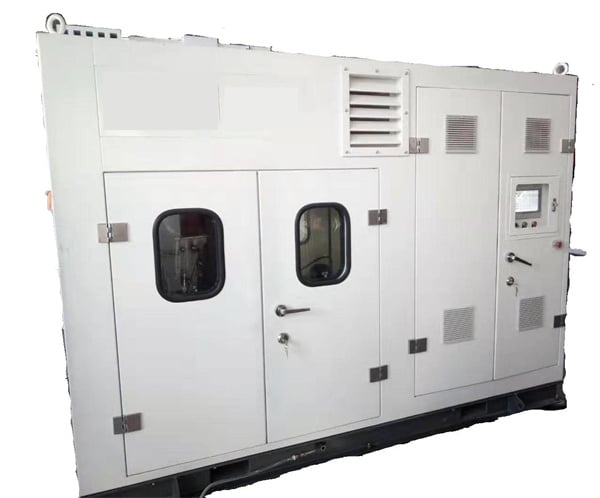

Micro gas turbine generator set
Micro gas turbine generator set

Micro gas turbine generator set

Product Brochure:DOWNLOAD

  • Introduction
Introduction

Micro gas turbine is a thermal generator characterized in less than one megawatt power, and rotor speed between tens to hundreds of thousands rpm. Due to the compact structure and advanced technology application of high speed motor and air bearing, micro gas turbine has significant advantages on lifetime, mobility, reliability, fuel flexibility, noise, extensibility, emission, maintenance etc. Therefore, it has gradually become the core power equipment of natural gas distributing energy system, and it is widely used in small to medium-sized enterprises, office buildings, shopping malls, hospitals, hotels and other CHP or CCHP application scenarios.

E series of micro gas turbines, independently designed and manufactured by us, has filled the industrialization gap of China. Compared with foreign gas turbines, our micro gas turbine have some unique advantages. On the one hand, E series are value for money with the price per kilowatt only about 1/2 of those of foreign products. On the other hand, E series are uniquely adjustable in heat-electricity ratio with exhaust gas temperature available from 270℃ to 650℃, which significantly expands the application scenarios. In addition, E series have good fuel flexibility. They can not only use gas fuels including biogas, marsh gas, but also liquid fuels like diesel and methanol. Therefore, we can quickly customized the development on the demand of customers. Besides, our independently designed products are far superior to foreign as turbines regarding supply cycle, after-sales service, operation and maintenance service, which are more suitable for domestic markets.


Models
No. Item Parameters Re-marks
1 Model E100 E100-R1-N E300 E300-R1-N Container type
2 Rated electricity power 135KWe 110KWe 390KWe 323KWe
3 Rated generating efficiency 15% 26% 17% 28%
4 Rated exhaust gas temperature 650℃ 270℃ 630℃ 294℃
5 Exhaust gas flow 1.06kg/s 1.06kg/s 2.87kg/s 2.75kg/s
6 Consumption of natural gas 95Nm3/h 45Nm3/h 243Nm3/h 122Nm3/h
7 Width*Length*Height 3200*2200*3410mm 5290*2200*3410mm 5500*2400*3250mm 7776*2400*3257mm
8 Weight 7.2t 7.9t 12t 15t
