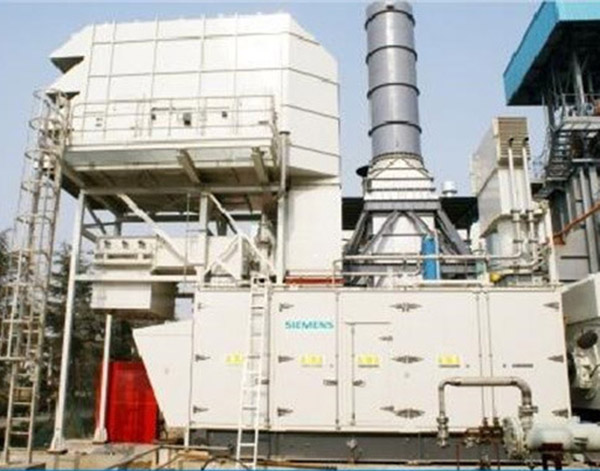

The core engine of QDR129 generator unit is specially designed for application of electrical power generating purpose, which has two stage power turbines and adopts the updated aerodynamics and combustion technology in the design. It enjoys the compact arrangement, good field serviceability, high reliability, short investment return period, stable and economical power output and strong steam supply capacity. It becomes the first choice of the gas turbine for petroleum and natural gas industry application.
| Power Generation | 12.90MW |
| Fuel | Natural gas |
| Frequency | 50/60Hz |
| Electrical efficiency | 34.8% |
| Heat rate | 10.355MJ/KWh |
| Turbine speed | 9500rpm |
| Compressor pressure ratio | 16.8:1 |
| Exhaust gas flow/temperature | 39.4kg/s, 555℃ |
| Nox emissions(with DLE, corrected to 15% O2 dry) | ＜25ppmV |
| QDR129 Technical data | |
| Power generation device-Weight and Dimensions | ||
| Length:Upper control system with Base | 13.5m | (527 ins) |
| Upper control system without Cantilever | 18.6m | (732 ins) |
| Width: | 2.7m | (106 ins) |
| Height: | 3.1m | (122 ins) |
| Height:To the top of the box | 3.87m | (152 ins) |
| Weight: | 75,000kg | (165,334Ibs) |
