QDRA70 heat-electricity co-generation package set
QDRA70 heat-electricity co-generation package set

QDRA70 heat-electricity co-generation package set

Product Brochure:DOWNLOAD

  • Introduction
Introduction

QDRA70 gas turbine generating set which adopts Siemens’ SGT200 gas turbine possesses the characteristics of simple design, reliable operation, less emission, and excellent performs. It is able to burn liquid fuel and gas fuel of different kinds. The modular integrated design concept is adopted in the generating set. The modules are assembled as an integrated unit and installed on a standard base after the pre-assembly and the factory testing, which is very convenient for transportation, installation and field maintenance. During industrial power generating, the heat in the high temperature exhaust from the gas turbine can be reused by the heat recovery boiler, which makes the whole comprehensive heat efficiency up to 85%.

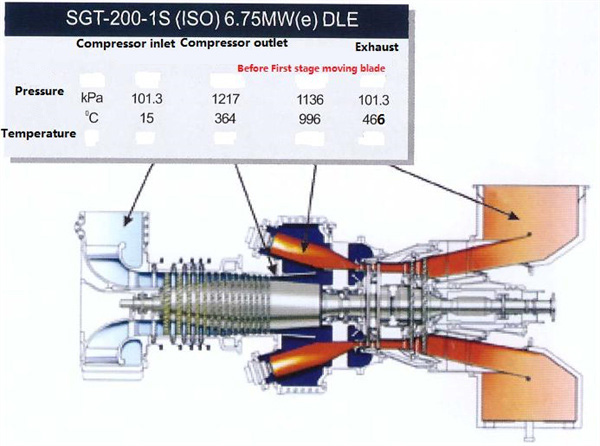

  • 图片16

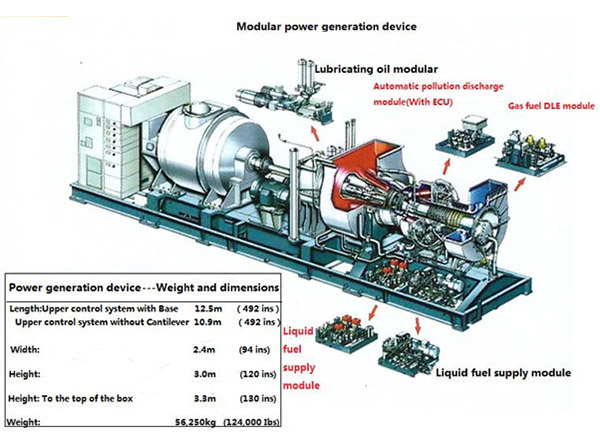

  • 图片17
Models
Type QDRA70
Power 6.75MW
Electrical efficiency 31.5%
Heat consumption 11.418MJ/KWh
Turbine speed 11053rpm/min
Pressure ratio 12.2:1
Exhaust flow, temperature 29.3kg/s, 469℃
Output voltage 10.5or 6.3kv
Steam output 11-14t/h
Fuel Natural Gas, Coke oven gas, biogas
Nox emissions(with DLE, corrected to 15% O2 dry) ≤  25ppmV
QDRA70 Technical data
