1MW Condensing Steam Turbine Generator Unit
1MW Condensing Steam Turbine Generator Unit
1MW Condensing Steam Turbine Generator Unit
1MW Condensing Steam Turbine Generator Unit
1MW Condensing Steam Turbine Generator Unit
1MW Condensing Steam Turbine Generator Unit

1MW Condensing Steam Turbine Generator Unit

Product Brochure:DOWNLOAD

GET A QUOTE
  • Introduction
Introduction

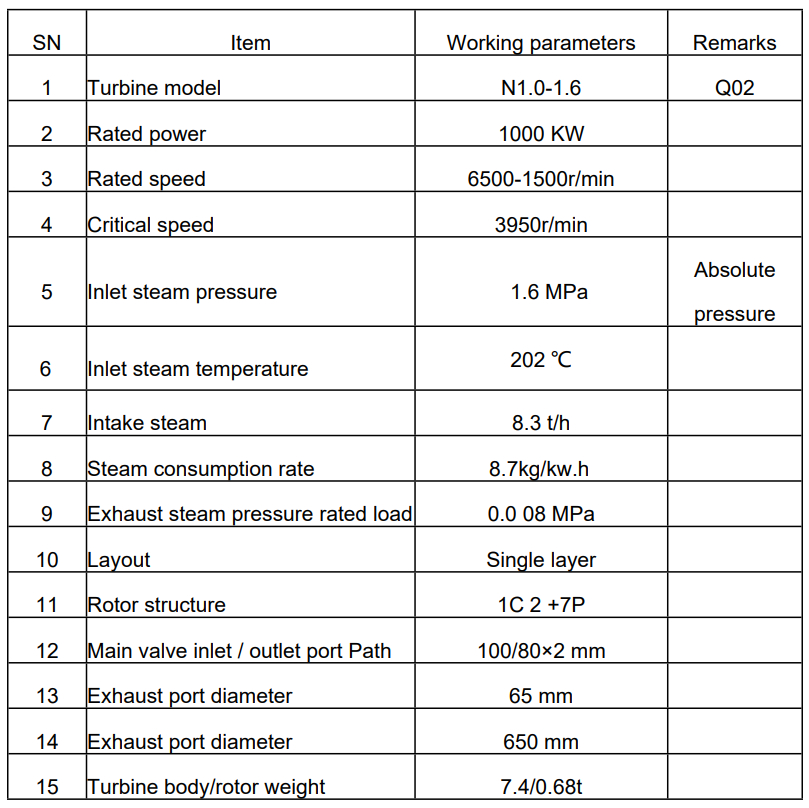

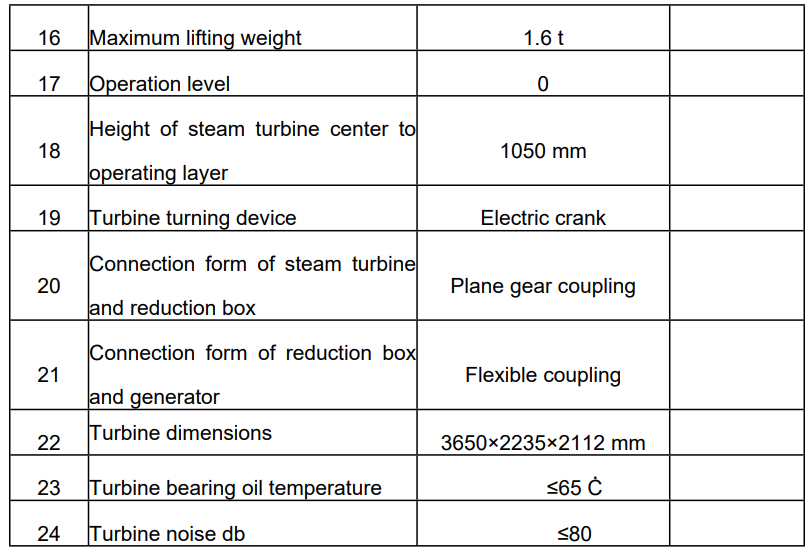

Steam Turbine

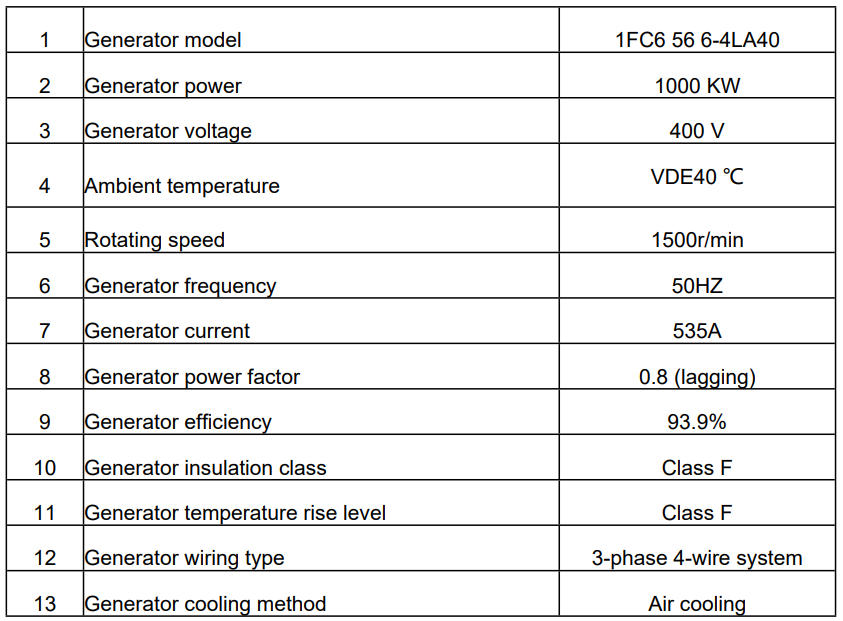

Generator


Technical conditions of steam turbine - Inlet steam pressure Mpa(a): 1.6
- Inlet steam temperature ℃: 202 ℃
- Condensing steam pressure Mpa(a): <0.0 08
- Rated power KW: 1000
- Rated speed r/min : 6500r/min
- Normal speed r/min : 6500r/min
- Speed range: -105%
- Guaranteed value of steam turbine rated steam consumption: 8.7 kg/kw.h
- Guaranteed value of steam turbine noise: <80 decibels
- Guaranteed value of steam turbine shaft vibration: <0.03 mm
- Turbine steering: viewed clockwise from the turbine to the generator - Circulating cooling water temperature ℃: normal 27, maximum 33
