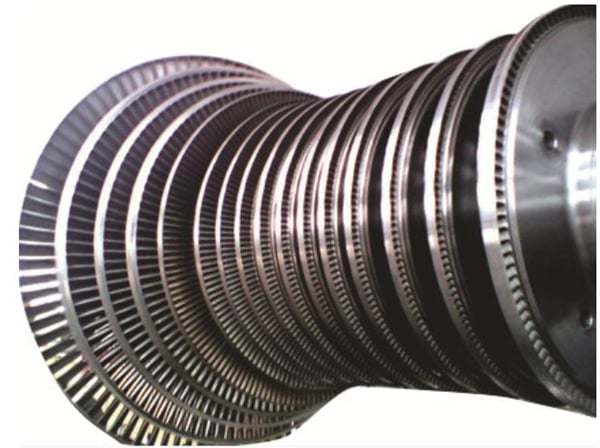

Steam turbine is a kind of rotary steam power plant. High temperature and high pressure steam passes through a fixed nozzle to become accelerated airflow and then is injected onto the blades to rotate the rotor equipped with blade rows while doing work externally. Steam turbine is the main equipment of modern thermal power plant, and is also used in metallurgical industry, chemical industry and ship power equipments.
Performance characteristics:

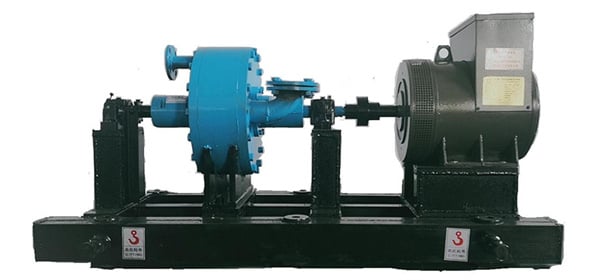

MST type steam turbine is a multi-stage steam turbine with 380 mm diameter impeller pitch circle and 1500-3000-5600-6500 rpm spindle speed. MST is a 1KW-500KW generator turbine unit that can use new steam or saturated temperature, with steam inlet pressure of only 0.15MPa and steam inlet temperature of saturated temperature. It is mainly used in the fields of energy comprehensive utilization such as ceramics, cement, power plants, chemical industry, chemical fiber, paper making, sugar making, iron and steel, waste treatment and enterprise-owned power stations, regional cogeneration, urban waste power stations, gas-steam combined cycle power generation, etc. The operation cost of the equipment is lower and the economic benefit is more remarkable. With the realization of the great rejuvenation of the Chinese nation, the "Chinese dream" and the cohesion of China's strength, the company will wholeheartedly provide first-class products and high-quality services to users and make due contributions.
Unit characteristics:
Wide working range, working pressure of 0.15Mpa working pressure of 4.9Mpa.
According to the power size and user requirements, single-layer and double-layer layout structures are designed.
This series of steam turbines are also called small steam turbines. They are easy to install and can also be installed quickly. After the equipment is transported to the user's site, the unit can be directly commissioned.
The adjustment modes include electric valve adjustment and digital electro-hydraulic (DEH) adjustment, which can be used selectively. The auxiliary devices include ETS, TSI and DCS. Auxiliary devices of small units can be ignored.
The steam source can be superheated steam or saturated steam.
The impeller blades of the unit are integrated, with high safety, long service life, no damage and no maintenance. The rotor is required to be used within the operating range.
The steam inlet pressure in the sample is a standard parameter, and a special steam turbine can be designed according to the actual parameters of the user.
Model | Capacity (kw) | Speed(r/min) | Inlet | Consumption (kg/kw.h) | Exhaust Pressure (Mpa) | Weight (t) | Overall Dimensions LxWxH(mm) | ||
Pressure (Mpa) | Temp. (℃) | Flow (t/h) | |||||||
N0.05-1.27 | 30-50 | 1500 | 1.27 | 300 | 0.3 | 6.2 | 0.06 | 0.33 | 506x211x621 |
N0.07-1.27 | 50-70 | 1500 | 1.27 | 300 | 0.5 | 6.42 | 0.06 | 0.43 | 560x251x652 |
N0.03-1.27 | 1-30 | 1500 | 1.27 | 300 | 0.2 | 6.67 | 0.06 | 0.16 | 322x211x351 |
N0.1-1.27 | 70-100 | 1500 | 1.27 | 300 | 0.6 | 6.36 | 0.06 | 0.55 | 706x403x666 |
NO.15-1.27 | 150 | 1500 | 1.27 | 300 | 1 | 6.35 | 0.05 | 0.62 | 735x432x701 |
N0.2-1.27 | 200 | 1500 | 1.27 | 300 | 1.3 | 6.36 | 0.05 | 0.7 | 821x456x801 |
N0.3-1.27 | 300 | 1500 | 1.27 | 300 | 1.9 | 6.33 | 0.05 | 0.76 | 850x475x855 |
N0.4-1.27 | 400 | 1500 | 1.27 | 300 | 2.7 | 6.63 | 0.05 | 0.81 | 933x520x900 |
N0.5-1.27 | 500 | 1500 | 1.27 | 300 | 3.1 | 6.25 | 0.05 | 0.88 | 988x622x956 |
N.55-1.27 | 550 | 1500 | 1.27 | 300 | 3.7 | 6.74 | 0.05 | 0.9 | 988x635x975 |
N0.6-1.27 | 600 | 1500 | 1.27 | 300 | 4 | 6.7 | 0.05 | 0.95 | 1010x755x1000 |
B0.05-1.27/0.2 | 30-50 | 1500 | 1.27 | 300 | 0.8 | 26.2 | 0.2 | 0.31 | 506x211x621 |
B0.07-1.27/0.2 | 50-70 | 1500 | 1.27 | 300 | 1.3 | 26.42 | 0.2 | 0.43 | 506x251x652 |
B0.03-1.27/0.2 | 1-30 | 1500 | 1.27 | 300 | 0 | 26.67 | 0.2 | 0.16 | 322x211x351 |
B0.1-1.27/0.2 | 70-100 | 1500 | 1.27 | 300 | 1.8 | 26.36 | 0.2 | 0.55 | 706x403x666 |
B0.15-1.27/0.2 | 150 | 1500 | 1.27 | 300 | 4 | 26.35 | 0.2 | 0.62 | 735x432x701 |
B0.2-1.27/0.2 | 200 | 1500 | 1.27 | 300 | 5.3 | 26.36 | 0.2 | 0.7 | 821x456x801 |
B0.3-1.27/0.2 | 300 | 1500 | 1.27 | 300 | 7.9 | 26.33 | 0.2 | 0.76 | 850x475x855 |
B0.4-1.27/0.2 | 400 | 1500 | 1.27 | 300 | 11 | 26.63 | 0.2 | 0.81 | 933x520x900 |
B0.5-1.27/0.2 | 500 | 1500 | 1.27 | 300 | 13 | 26.25 | 0.2 | 0.88 | 988x622x956 |
B0.55-1.27/0.2 | 550 | 1500 | 1.27 | 300 | 15 | 26.74 | 0.2 | 0.9 | 988x635x975 |
B0.6-1.27/0.2 | 600 | 1500 | 1.27 | 300 | 16 | 26.7 | 0.2 | 0.95 | 1010x755x1000 |
