Dongturbo's leading product, thermal power turbine, has a complete product series of various types or combinations such as condensation, air cooling and heat supply. The power and parameters of the unit have developed from 1MW high-pressure turbine to 300 MW ultra-supercritical turbine. It has mature, reliable and advanced air cooling and heat supply technologies and complete auxiliary equipment, and is in the leading position in China.
With rapid development of the world economy and increasing shortage of the industrial energy, national policies for energy conservation and emission reduction are greatly implemented to move the industrial energy towards efficient, environment-friendly and sustainable development.
High-parameter, single-reheat and single-casing turbine units emerge at the right time to greatly improve the unit economical efficiency, fully use abundant waste heat generated in various industrial sectors, achieve energy conservation and emission reduction, and reduce costs arising from manufacturing and civil works.
To meet market demand and achieve energy conservation and emission reduction, Dongfang Turbine Co., Ltd. has independently and innovatively developed the 65 MW ultra-high-pressure single-casing single-reheat condensing turbine with the support of purchase orders.
Compared with the conventional high-temperature, high-pressure, non-reheat, straight condensing 65 MW turbine, Dongfang 65 MW single-casing reheat unit has low thermal consumption.
Compared with the ultra-high-pressure, high-temperature, reheat straight condensing 135 MW turbine in double-casing structure, the single-casing reheat turbine lowers the costs arising from manufacturing and civil works, and enhances the comprehensive competitiveness.
Compared with the ultra-high-pressure, high-temperature, reheat straight condensing 135 MW turbine in double-casing structure, the single-casing reheat turbine lowers the costs arising from manufacturing and civil works, and enhances the comprehensive competitiveness.
More importantly, the first unit shows excellent performance indicators and proves high economical efficiency and safety since being put into operation.
Impulse steam turbine, Enlarged base, Fast loading structure
Packaged oil container
Delivery the whole steam turbine without opening the cylinder to minimize the time of on-site installation time
High efficiency, Strong working ability, Large power headroom
Simple and reliable structure, Sensitive start, Stable le operation.
Good performance with variable speed and conditions

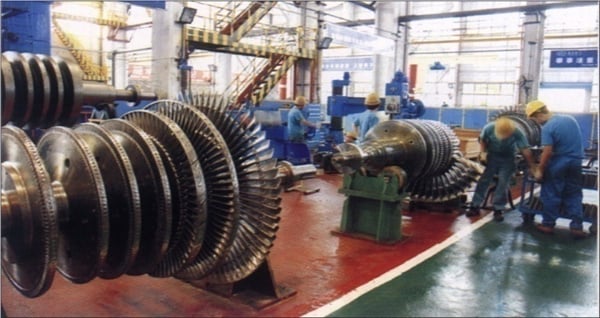

Rotor and dynamic blade with advanced design technology
High speed dynamic balance and the thermal load test in factory
Advanced and reliable control technology
Typical straight condensing units
| Model | N110-8.83 | N65-8.83 | NZK60-1.9 | N25-3.43 |
| Product code | D110B (Riau, Indonesia) | D65C (Sulawesi) | A163A (Shenhua Ningxia Coal Industry) | D25H (Jiujiang Pinggang) |
| Type | High-pressure, double-casing, double-flow condensing turbine | High-temperature, high-pressure, single-casing condensing turbine | Sub-intermediate pressure, single-casing, air-cooled condensing turbine | Intermediate pressure, single-casing condensing turbine |
| Rated/Max. power, MW | 110/117 | 65/69 | 60/65 | 25/27.5 |
| Steam admission pressure, MPa/ Temperature, ℃ | 8.83/535 | 8.83/535 | 1.9/335 | 3.43/435 |
| Rated/Max. steam admission flow, t/h | 398/427 | 243/260 | 297/320 | 102/113 |
| Back pressure, KPa | 8.2 | 6.28 | 14 | 9.5 |
| Regenerative system | 2GJ+1CY+4DJ | 2GJ+1CY+3DJ | NO | NO |
| Quantity | 2t | 2t | 4t | 1t |
Typical extraction condensing units
| Model | CC125/96-8.83/4.8/1.1 | CC60-8.83/1.27/0.49 | CCZK50-11.9/4.6/1.4 | CC25-8.83/4.1/1.28 |
| Product code | D125C (Chongqing Chemical & Phamaceutical) | D60L (Guangzhi Haizhu) | A454A (Shenhua Ningxia Coal Industry) | D25J (Gangcheng Thermal Power) |
| Type | High-pressure, double-casing, double-extraction condensing turbine | High-pressure, single-casing, double-extraction condensing turbine | Ultra-high pressure, single-casing, double-extraction, air-cooled condensing turbine | High-pressure, single-casing, double-extraction condensing turbine |
| Rated/Max. power, MW | 125/130 | 60/63 | 50/60 | 25/30 |
| Steam admission pressure, MPa/ Temperature, ℃ | 8.83/535 | 8.83/535 | 11.9/535 | 8.83/535 |
| Rated/Max. steam admission flow, t/h | 520/550 | 218/350 | 326/352 | 93/262 |
| Back pressure, KPa | 6.3 | 7.0 | 14 | 6.6 |
| Extraction pressure, MPa | 4.8/1.1 | 1.27/0.49 | 4.6/1.4 | 4.1/1.28 |
| Rated extraction flow, t/h | 82/125 | 73/120 | 150/50 | 60/80 |
| Max. extraction flow, t/h | 110/160 | 100/140 | 200/100 | 70/100 |
| Regenerative system | 2GJ+1CY+3DJ | 2GJ+1CY+3DJ | NO | 2GJ+1CY+3DJ |
Typical backpressure units
| Model | B60-8.83/0.981 | B46-8.83/1.5 | B30-8.83/0.785 | B12-8.83/5.0 |
| Product code | D60Q (Nine Dragons Paper) | Erdos (D46A) | D30C (Xinjiang Meihua) | D12N (Xinjiang Kingho) |
| Type | High-temperature, high-pressure, single-casing, backpressure | High-temperature, high-pressure,single-casing, backpressure | High-temperature, high-pressure,single-casing, backpressure | High-pressure, single-casing, backpressure |
| Power, MW | 60/63 | 46/48.6 | 30/32 | 12/15 |
| Steam admission pressure, MPa/ Temperature, ℃ | 8.83/535 | 8.83/535 | 8.83/535 | 8.83/535 |
| Steam admission flow, t/h | 448/470 | 418.8/440 | 233.6/254.5 | 372/450 |
| Exhaust pressure, MPa | 0.981 | 1.5 | 0.785 | 5.0 |
| Regenerative system | 2GJ+1CY | 2GJ+1CY | 2GJ+1CY | NO |
| Quantity | 1 | 2 | 2 | 1 |
Typical backpressure extraction units
| Model | CB50-10.5/3.8/1.3 | CB40-8.83/2.8/1.275 | CB30-8.83/3.53/1.37 | CB30-12.3/4.7/1.8 |
| Product code | A355A (Huanneg Yingkou) | D40B (Songhuajiang) | D30F (Juhua Group) | A434A (Qilu Petrochemical) |
| Type | High-pressure, single-casing, extraction backpressure | High-temperature, high-pressure, single-casing, extraction backpressure | High-temperature, high-pressure, single-casing, extraction backpressure | Ultra-high pressure, extraction backpressure |
| Power, MW | 58.6/68.9 | 41/43 | 28.2/30.4 | 30/35 |
| Steam admission pressure, MPa/ Temperature, ℃ | 10.5/565 | 8.83/535 | 8.83/535 | 12.3/535 |
| Steam admission flow, t/h | 470/495 | 417.6/450 | 280/300 | 328/430 |
| Extraction pressure, MPa | 3.8 | 2.8 | 3.53 | 4.7 |
| Exhaust pressure, MPa | 1.3 | 1.275 | 1.37 | 1.8 |
| Extraction flow, t/h | 82/100 | 140/180 | 50/60.4 | 149/227 |
| Regenerative system | 2GJ+1CY+1 steam pump | 2GJ+1CY | 2GJ+1CY | 1GJ |
| Quantity | 2 | 2 | 1 | 1 |
Parameters of Reheat Steam Turbine
| Item | 30 MW ultra-high-pressure, single-reheat condensing turbine | 40 MW ultra-high-pressure, single-reheat condensing turbine | 65MW ultra-high-pressure, single-reheat condensing turbine | 65MW ultra-high-pressure, single-reheat condensing turbine | 100MW ultra-high-pressure, single-reheat condensing turbine |
| Rated power, MW | 30 | 40 | 5050 | 65 | 100 |
| Steam admission pressure, MPa.a | 13.2 | 13.2 | 8.83 | 13.2 | 13.2 |
| Steam admission temperature, ℃ | 535 | 538 | 538 | 538 | 538 |
| Reheat temperature, ℃ | 535 | 538 | 566 | 538 | 538 |
| Rated steam admission flow, t/h | 92 | 123.2 | 220 | 200.5 | 303.3 |
| Rated backpressure, Kpa | 4.9 | 4.9 | 4.9 | 4.9 | 4.9 |
| Steam consumption in rated working condition, kg/kW.h | 3.066 | 3.079 | 2.89 | 3.084 | 3.033 |
| Rated speed | 5350 | 5350 | |||
| Feed water temperature, ℃ | 220.4 | 236.2 | 229.3 | 248.4 | 252.5 |
| Last-stage blade height, mm | 411.2 | 420 | 736.6 | 736.6 | 909 |
| Annual operation hours, h | 8000 | 8000 | 8000 | 8000 | 8000 |
